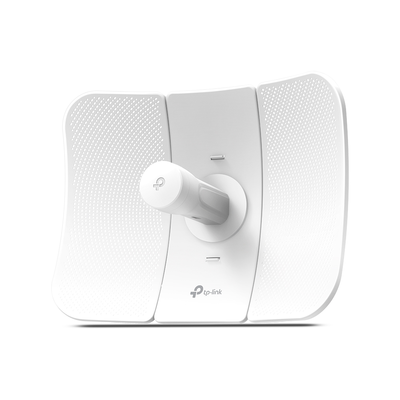

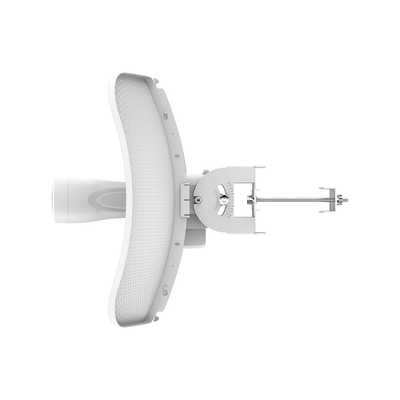

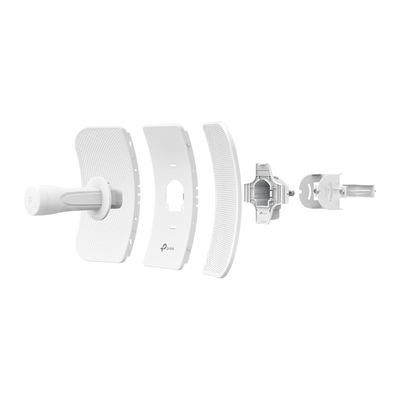

TP-LINK - CPE de Exterior de 5 GHz a 300Mbps, Antena direccional de 23dBi, potencia de 27 dBm, PoE pasivo

CARACTERÍSTICAS DE HARDWARE Procesador: Qualcomm 560MHz CPU, MIPS 74Kc Memoria: 64MB DDR2 RAM, 8MB Flash Interface: 1 10/100Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button Fuente de Alimentación: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC Dimensiones (W X D X H): 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) Dimensiones: 360 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) (No mount) Ganancia de Antena: 23dBi Cobertura de Antena: 9°(Azimuth), 7°(Elevation) Protección: 15KV ESD Protection 6KV Lightning Protection Cercado: Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design CARACTERÍSTICAS INALÁMBRICAS Estándares Inalámbricos: IEEE 802.11a/n Protocolo Propietario: TDMA Mode (with Pharos MAXtream enabled) Velocidades Inalámbricas: Up to 300Mbps (40MHz, Dynamic) Up to 144.4Mbps (20MHz, Dynamic) Up to 72.2Mbps (10MHz, Dynamic) Up to 36.1Mbps (5MHz, Dynamic) Frecuencia: 5.15~5.85GHz Potencia de Transmision: Max. 27dBm (Adjustable power by 1dBm) CARACTERÍSTICAS DE SOFTWARE Configuracion De Red: WAN: Static/Dynamic/PPPoE/L2TP/PPTP LAN: Static/Dynamic/DHCP Forwarding: ALG/UPnP/Virtual Server/Port Trigger Security: SPI Firewall/ Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding Configuraciones Inalámbricas: Pharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Administración: Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server Herramientas de sistema: Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute Optimizaciones a Nivel de Sistema: Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog POE ADAPTER FEATURES Dimensions(W x D x H): 85.8×43.9×29.7 mm Interfaces: 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) Botón: Remote Reset Button Power Status LEDs: Green Input: 100-240VAC, 50/60Hz Output: 24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Eficiencia: >84.29% Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark OTROS Certificacion: CE, FCC, RoHS, IP65 Contenidos del Paquete: Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide Requisitos del Sistema: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. Ambiente: Operating Temperature: -40°C~70°C (-40°F~158°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing

Características

• CPU Qualcomm 560MHz para procesamiento eficiente
• Memoria RAM 64MB DDR2 para mejor rendimiento
• Antena direccional 23dBi con cobertura 9°/7°
• Protección ESD 15kV y rayos 6kV
• Diseño IP65 resistente agua y polvo
• Potencia transmisión 27dBm ajustable 1dBm
