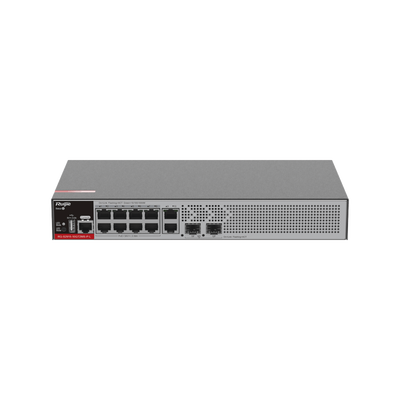

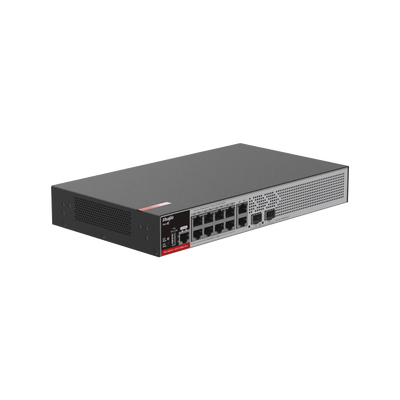

RUIJIE - Switch PoE+ Empresarial 125 Watts, Administrable L2+, 8 Puertos PoE Gigabit , 2 Puertos Uplink Gigabit y 2 Puertos Uplink SFP 2.5G

Key Specification Fixed Service Ports: 10 × 10/100/1000BASE-T ports, ports 1 to 8 supporting PoE/PoE+2 × 1GE/2.5GE SFP ports Management port: 1 x RJ45 console port Switching capacity: 30 Gbps Forwarding rate: 22.5 Mpps Capacity of MAC address table: 16000 Power module: 1 x fixed power module Fan module: 1 x fan module Cooling mode: Fan cooling Input power: Rated input voltage range: 100V AC to 240V AC, 50/60HzMax. input voltage range: 90V AC to 264V AC, 50/60Hz Power consumption: 141W (PoE budget: 125W) Surge protection: 10 kV Dimensions (W x D x H): 297 mm × 170 mm × 44.5 mm (11.69 in. x 6.69 in. × 1.75 in.) Temperature: Operating temperature: 0°C to 45°C (32°F to 113°F)Storage temperature: –40°C to +70°C (–40°F to +158°F) Warranty: 3 years Ports Fixed Service Ports: 10 × 10/100/1000BASE-T ports, ports 1 to 8 supporting PoE/PoE+ Uplink Ports: 2 × 1GE/2.5GE SFP ports Performance Switching capacity: 30 Gbps Forwarding rate: 22.5 Mpps MAC address table: 16000 entries Power Input power: 100V AC to 240V AC, 50/60Hz Max. input voltage range: 90V AC to 264V AC, 50/60Hz Power consumption: 141W (PoE budget: 125W) Power module: 1 x fixed Physical Cooling: Fan cooling Fan module: 1 x fan module Surge protection: 10 kV Dimensions: 297 mm × 170 mm × 44.5 mm (11.69 in. x 6.69 in. × 1.75 in.) Environmental Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Warranty 3 years

Características

• 10 puertos 10/100/1000Base-T con PoE/PoE+
• 8 puertos PoE+ con presupuesto de 125W
• 2 puertos SFP Uplink 2.5Gbps
• Capacidad de conmutación 30Gbps y velocidad 22.5Mpps
• Protección contra sobretensiones de 10kV
• Diseño compacto 1U con ventilación activa
