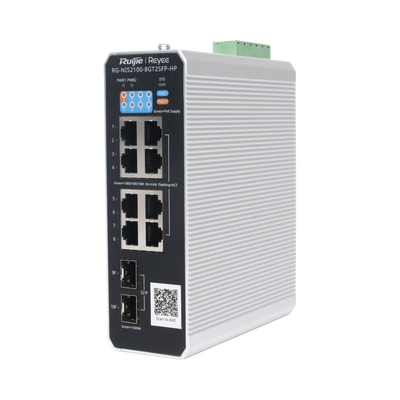

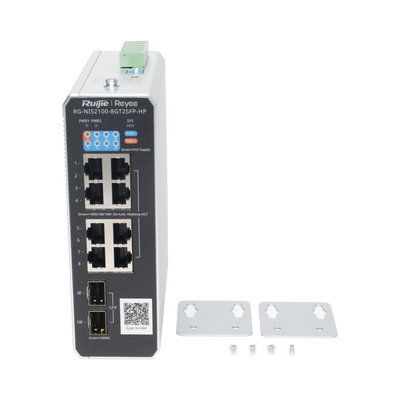

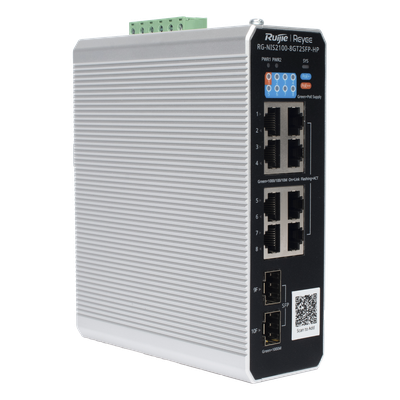

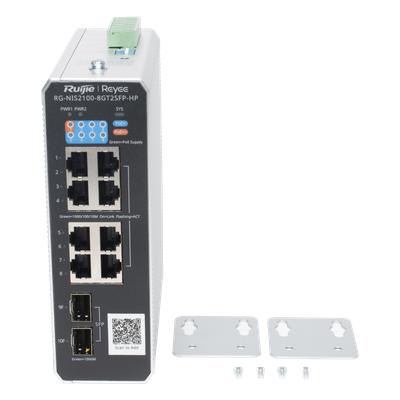

RUIJIE - Switch Industrial PoE+ hasta 300 watts , Ideal para temperaturas Extremas y protección contra descargas, 1 puerto PoE++ 60W y 7 puertos PoE+ 30W, 2 SFP Uplink

Key SpecificationNumber of 1 Gbps SFP Ports: 2Number of 10/100/1000BASE-T Ports: 8Layer: Layer 2Switching Capacity: 20 GbpsForwarding Rate: 14.8 MppsMAC Address Table Size: 8000Max. Number of VLANs: 16Dimensions (W x D x H): 50 mm x 155 mm x 130 mm (1.97 in. x 6.10 in. x 5.12 in.)Net Weight: 0.79 kg (1.74 lbs)Mean Time Between Failure (MTBF): > 200,000 hoursWarranty: 5 yearsPort Surge Protection: Common mode: 6 kvCertification: CEEspesificaciones de EnergiaSwitch DC input: ● Rated voltage range: 46 V DC to 57 V DC ● Rated current range: 7 A ● Consumo MIN. 12 W (sin carga PoE) ● Consumo MAX. 312 W (con carga PoE)Fuente RG-NIS-PA240-54 (AC input): ● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz● Rated input current: 3.5 A Output： ● Rated output voltage: 54 V DC ● Maximum output current: 4.4 A Fuente RG-NIS-PA120-54 (AC input): ● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 85 V AC to 264 V AC, 47 Hz to 63 Hz ● Rated input current: 1.5 A Output： ● Rated output voltage: 54 V DC ● Maximum output current: 2.5 A

Características

• Industrial para temperaturas extremas
• Protección contra descargas eléctricas
• 1 Puerto PoE++ y 7 Puertos PoE+
• 2 Puertos SFP para conexión de fibra óptica
• Capacidad de conmutación de 20 Gbps
• Diseño compacto y resistente para entornos industriales

Descargas
