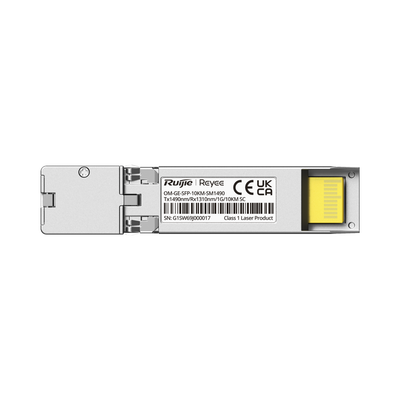

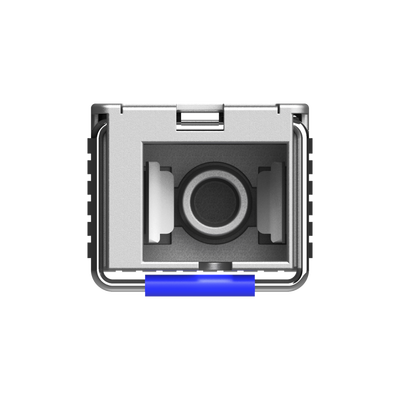

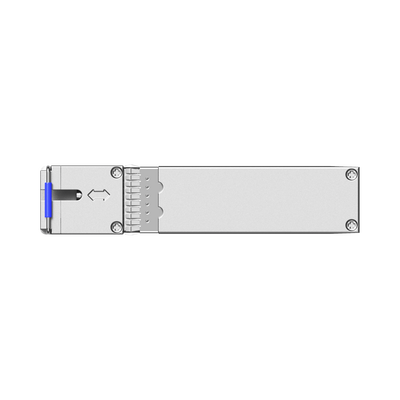

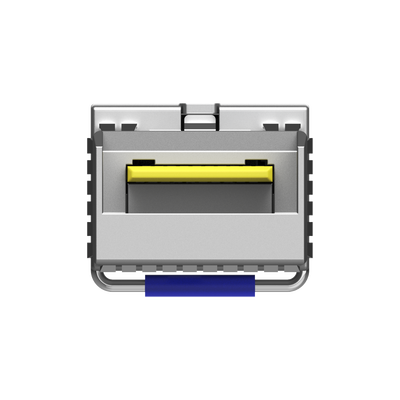

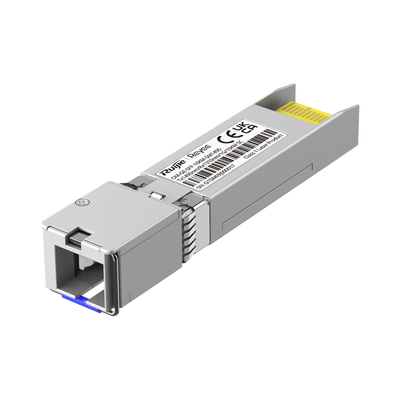

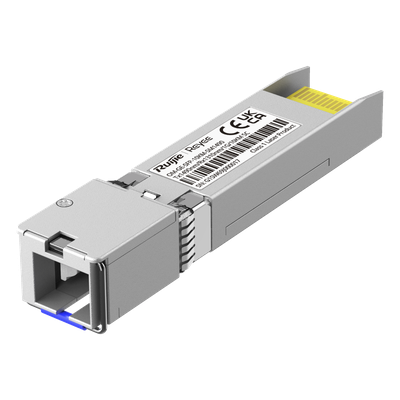

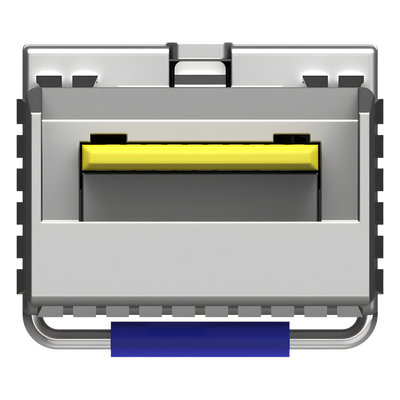

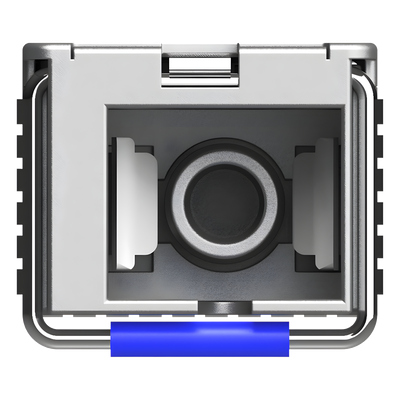

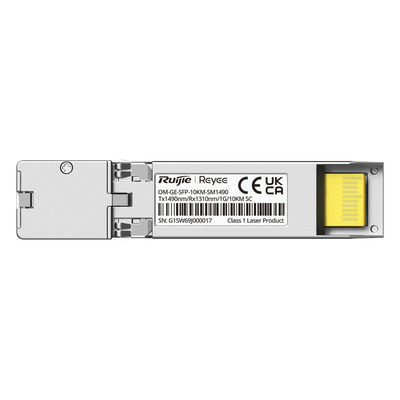

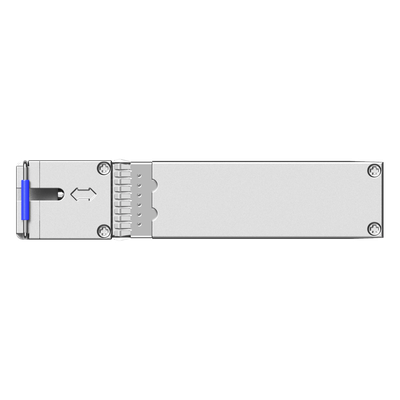

RUIJIE - e-Lighten Transceptor PON SC/UPC 1GB Monomodo hasta 10 Km

Key Specification Electrical Operating Voltage: 3.14 V to 3.46 V Max. Power Consumption: 1.5 W Environmental Operating Temperature: 0°C to 70°C (32°F to 158°F) Storage Temperature: –40°C to +85°C (–40°F to +185°F) Operating Humidity: 5% to 85% Optical Tx Wavelength: 1480 nm to 1500 nm Rx Wavelength: 1290 nm to 1330 nm Tx Power: 3 to 7 dBm Rx Power: –32 to –12 dBm Receiver Sensitivity: –32 dBm Performance Tx Rate: 1.25 Gbps Weight: 0.035 kg (0.08 lbs.)

Características

• Voltaje operativo de 3.14 V a 3.46 V
• Consumo máximo de energía de 1.5 W
• Temperatura operativa de 0°C a 70°C
• Longitud de onda TX de 1480 nm a 1500 nm
• Tasa de transferencia TX de 1.25 Gbps
• Distancia de transmisión hasta 10 km
