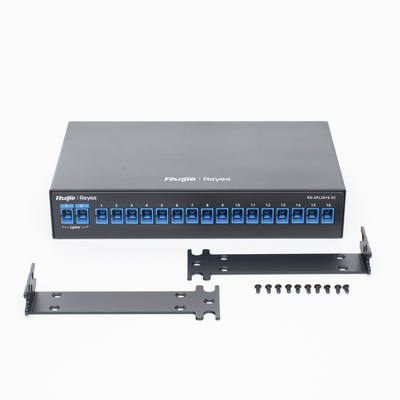

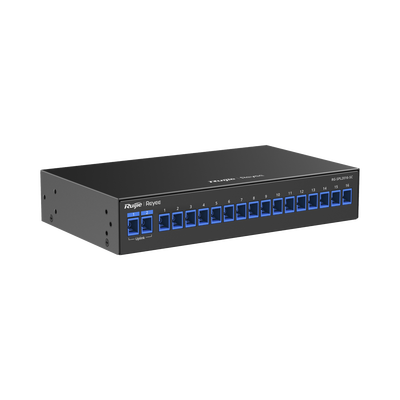

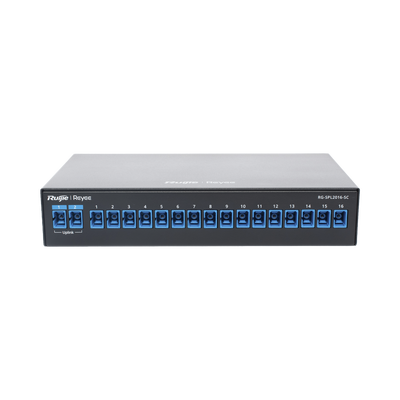

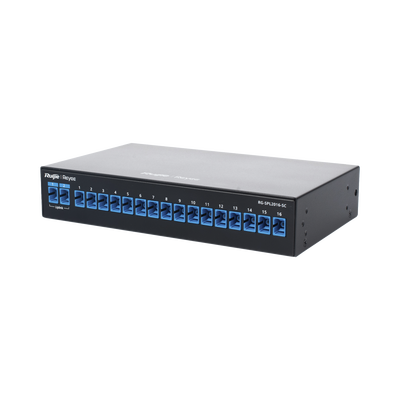

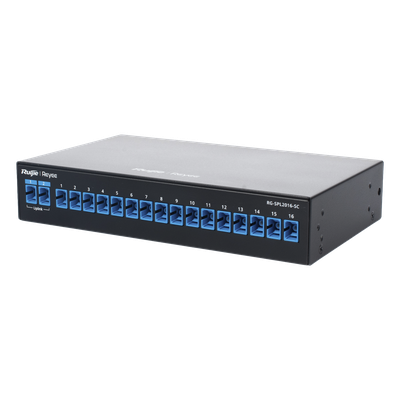

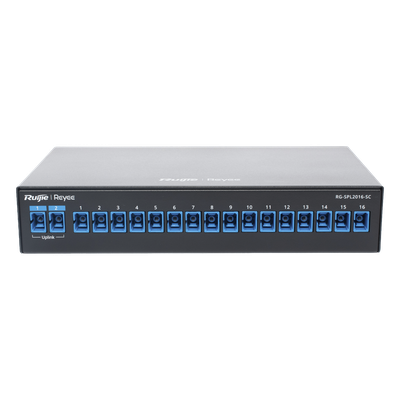

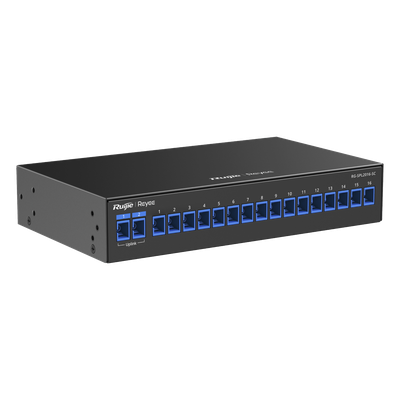

RUIJIE - e-Lighten Splitter Pasivo 2/16, Puertos PON SC/UPC, Frecuencias soportadas de 1260nm a 1650nm con hasta 500 mW de Potencia de Entrada

Key Specification General Model: RG-SPL2016-SC Warranty: 3 years Weight: 0.88kg (2.16 lbs.) Technical Specifications Operating Wavelength: 1260 nm to 1650nm Operating Temperature: –40°C to +85°C (–40°F to +185°F) Maximum Input Power: 500 mW Performance Insertion Loss: ≤ 17.7 dB Port Insertion Loss Uniformity: ≤ 1.5 dB Return Loss: ≥ 50 dB Additional Specs Wavelength-Dependent Loss: 0.4 (1310 + 40), 0.4 (1550 + 40) Temperature-Dependent Loss: ≤ 0.3 dB Polarization-Dependent Loss: ≤ 0.3 dB Physical Dimensions Dimensions (W x D x H): 220 mm x 130 mm x 42 mm (8.66 in. x 5.12 in. x 1.65 in.)

Características

• Longitud de onda operativa 1260 nm a 1650 nm
• Peso ligero 0.88 kg para fácil manejo
• Temperatura operativa de -40°C a +85°C
• Pérdida por inserción de 17.7 dB
• Dimensiones compactas 220 x 130 x 42 mm
• Potencia de entrada hasta 500 mW
